| PERFORMANCE |

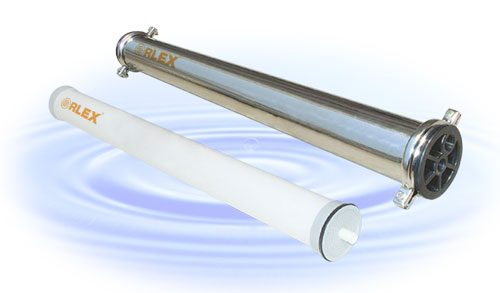

4040AMODULE |
| Maximum
Allow Pressure(MPa) |
0.6 |
| Transmembrane
Pressure(MPa) |
0.2 |
| Normal
Operation Pressure(MPa) |
0.1-0.2 |
| Backwash
Pressure(MPa) |
0.1 |
| PH
Value |
2-10 |
| Max
Allowable Concentration of Free Chlorine(Long
Term)(mg/L) |
50 |
| Max
Allowable Concentration of Free Chlorine(Short
Term)(mg/L) |
<300 |
| Operation
Mode |
Cross-flow
or Dead-end |
| Max
Operating Temperature(C) |
<40 |
| Membrane
Characteristics |
Hydrophilic/Double
skin |
| Membrane
Material |
PAN |
| MWCO(Dalton) |
50,000 |
| Membrane
Area(m2) |
5 |
| Fiber
Internal Diameter(mm) |
1.0 |
| Fiber
External Diameter(mm) |
1.6 |
| Number
of Hollow-Fiber(piece) |
1500 |
| Membrane
Module Size(mm) |
??116??1085 |
| Inlet
and Outlet Point Diameter(mm) |
G3/4""/"G1/2" |
| Max
Air Pressure for Integrity Test(MPa) |
0.2 |
| Flux
(0.1MPa,2ฺิิ5) |
1T/H |
Drinking water and ice process
